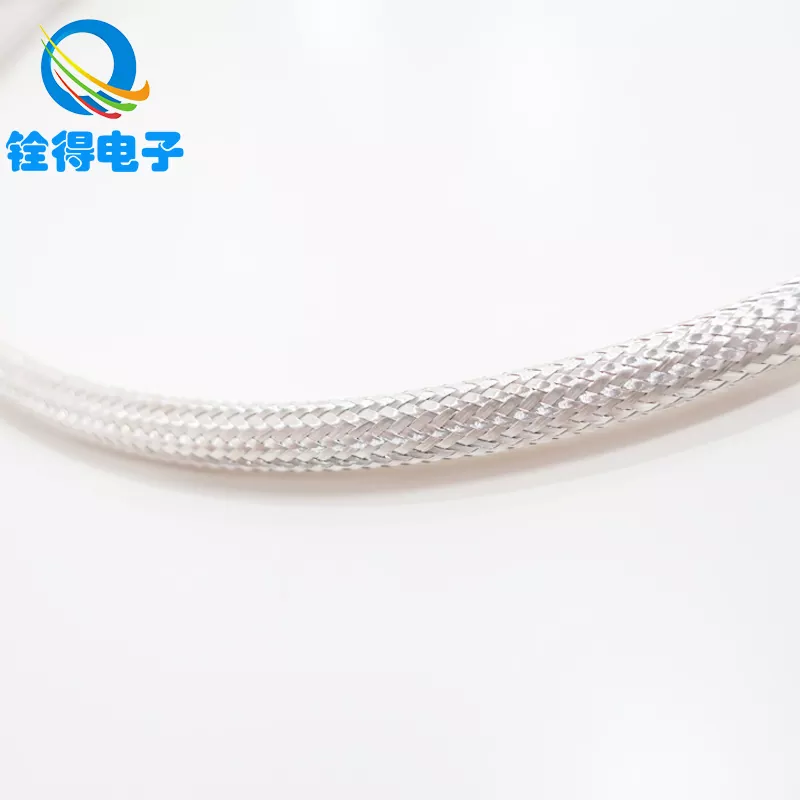

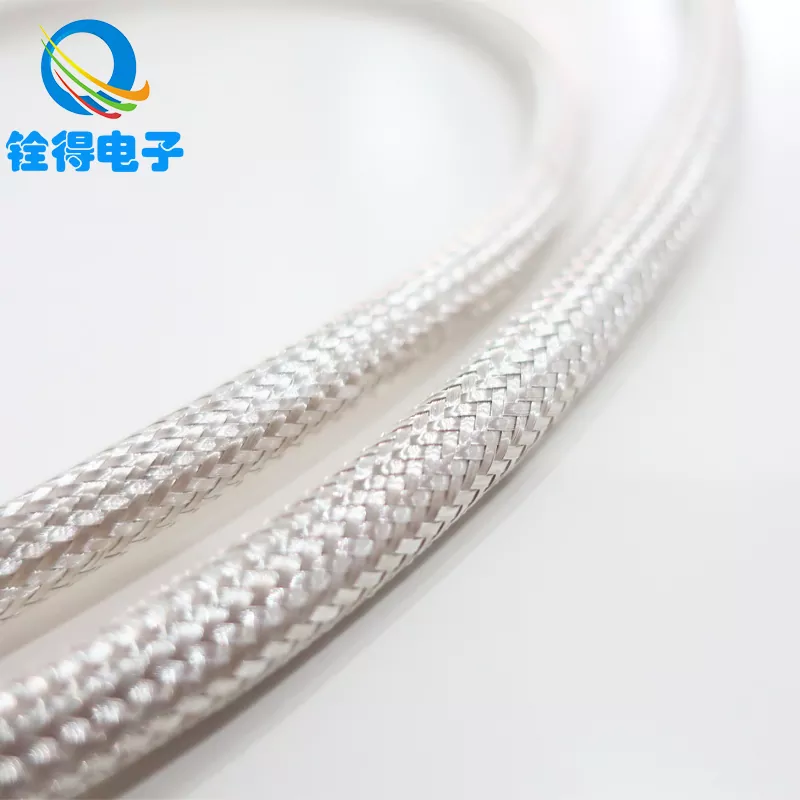

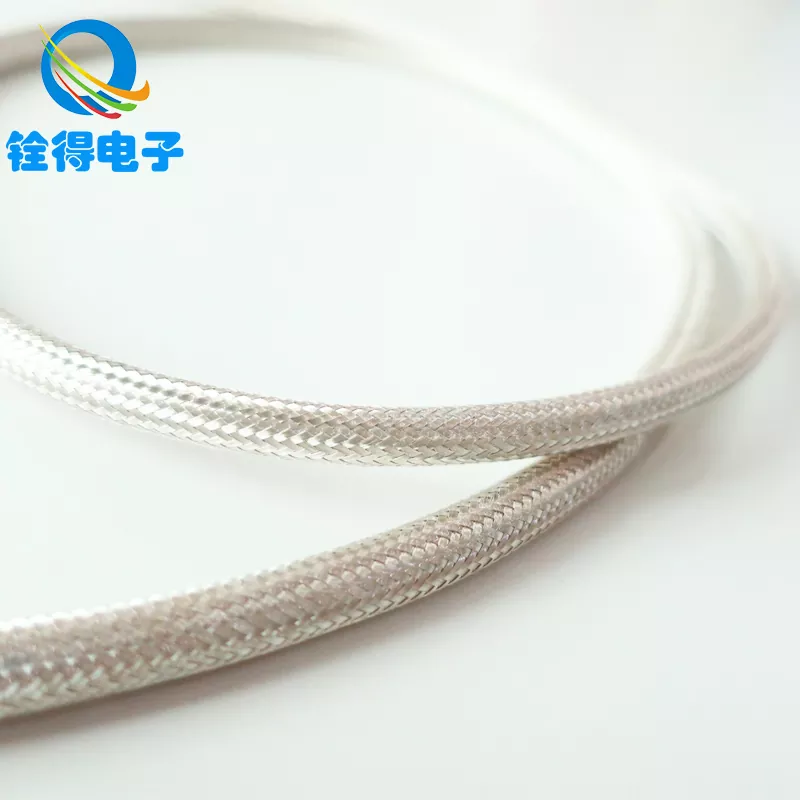

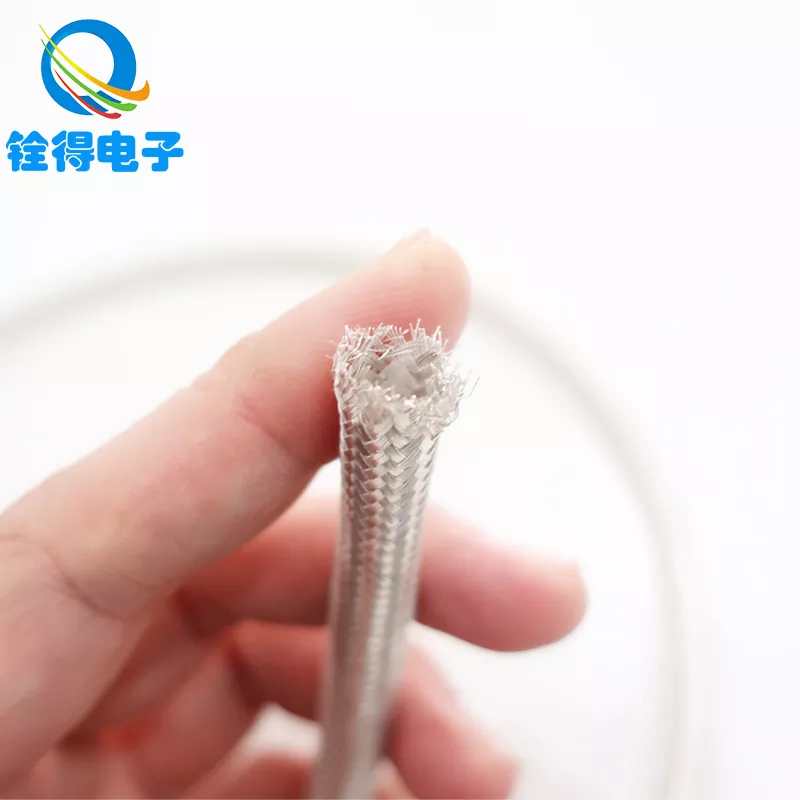

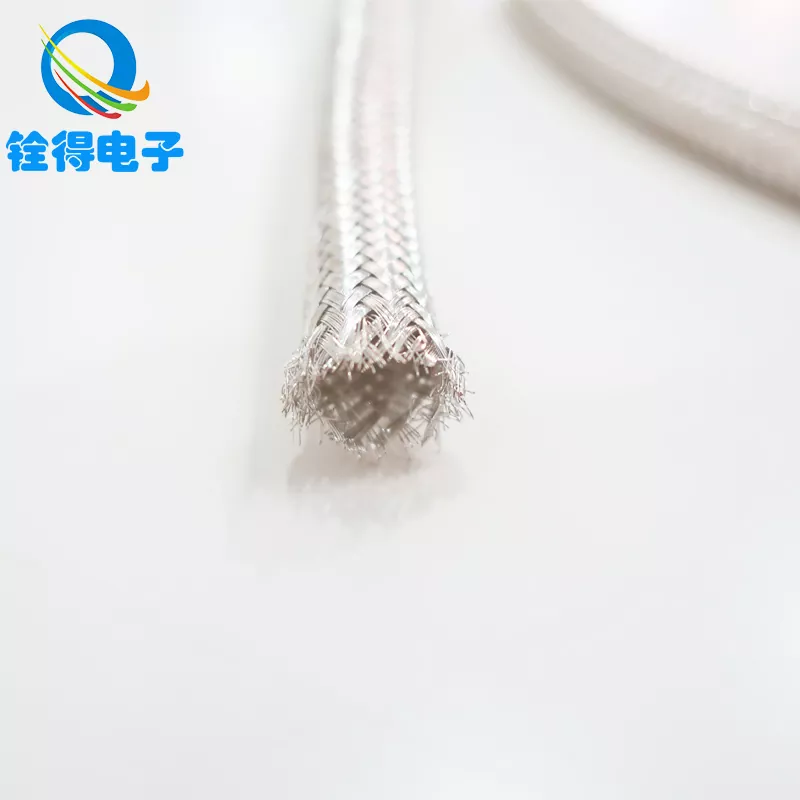

Pure Copper Silver-Plated Braided Mesh Tube

The pure copper silver-plated mesh tube is woven from multiple strands of wire diameters of 0.08mm, 0.10mm, 0.12mm, 0.15mm and other sizes. It can be woven in a variety of ways, such as single-sided weaving and double-sided weaving; single-sided weaving can be as thin as 0.2mm, which is mostly used in solar products. The double-sided weaving machine weaves out an elliptical or flat mesh tube. The elliptical mesh tube is convenient for use when covering high-temperature wires and cables. It can be easily put in directly, eliminating the step of telescopic expansion, and is more convenient to use. After the flat mesh tube is woven, it needs to be shaped to ensure that the width is not easily deformed, for example: 2mm\3mm\4mm\5mm\6mm\7mm\8mm\10mm and other widths; Quande Electronics can develop other different specifications of pure copper silver-plated braided mesh tubes according to the customer's shielding effect on the wires.

Purpose of pure copper silver-plated braided mesh tube: Because the mesh tube has good conductivity and shielding properties, it is often used in high-temperature cables or scenes that require signal shielding; such as electronic equipment such as aviation, ships, and drones, it can effectively block electromagnetic interference and radio frequency interference, prevent external electromagnetic waves from entering the interior, and also prevent internal signals from leaking outward, ensuring the stability and confidentiality of signal transmission. Pure copper silver-plated mesh tube can be used as a protective layer for the wire harness to prevent the wire harness from being affected by mechanical damage, humidity, and temperature. Protect the internal pure copper from erosion by the external environment, improve the corrosion resistance of the mesh tube, and extend its service life.

Pure copper silver-plated braided mesh tube is mostly used for shielding, such as:

- Electronic equipment: used for connecting wires inside electronic equipment such as computers, mobile phones, and tablets, such as display cables, camera cables, etc., to improve signal transmission quality and reduce electromagnetic interference.

- Communication field: In communication lines such as optical fibers and cables, it can effectively shield external electromagnetic interference, ensure the stability and accuracy of signal transmission, and improve communication quality.

- Audio and video equipment: such as audio, television, DVD player, etc., can be used to connect audio and video cables, improve the transmission effect of audio and video signals, reduce noise and interference, make the sound pure and the picture clear.

Pure copper silver-plated braided mesh can also be used for soft connection of high current equipment, such as:

- Generators, transformers, switches, busbars, industrial electric furnaces, rectifier equipment, electrolytic smelting equipment, welding equipment and other high current equipment. To withstand high current transmission and maintain good conductivity.

The role of pure copper silver-plated braided mesh tube:

- The silver plating layer can significantly improve the conductivity of the copper braided mesh, reduce resistance, and thus improve the current transmission efficiency.

- Pure copper silver-plated braided mesh tube can effectively form an electromagnetic shielding layer to block external interference and protect the normal operation of internal electronic equipment.

- Pure copper silver-plated braided mesh tube has high mechanical strength and flexibility, is resistant to bending, and can adapt to various complex installation environments and stress conditions.

The pure copper silver-plated braided mesh tubes woven by Quande Electronics Manufacturer usually have wire diameters of 0.08mm, 0.10mm, and 0.12mm, which are smooth, burr-free, and free of broken wires.
