Is the ESD Ground Cable the Key to Reliable Static Control in Modern Electronics?

In an era where electrostatic discharge (ESD) can silently wreck sensitive electronic components and production lines, the ESD Ground Cable stands as a pivotal device for ensuring safe discharge paths.

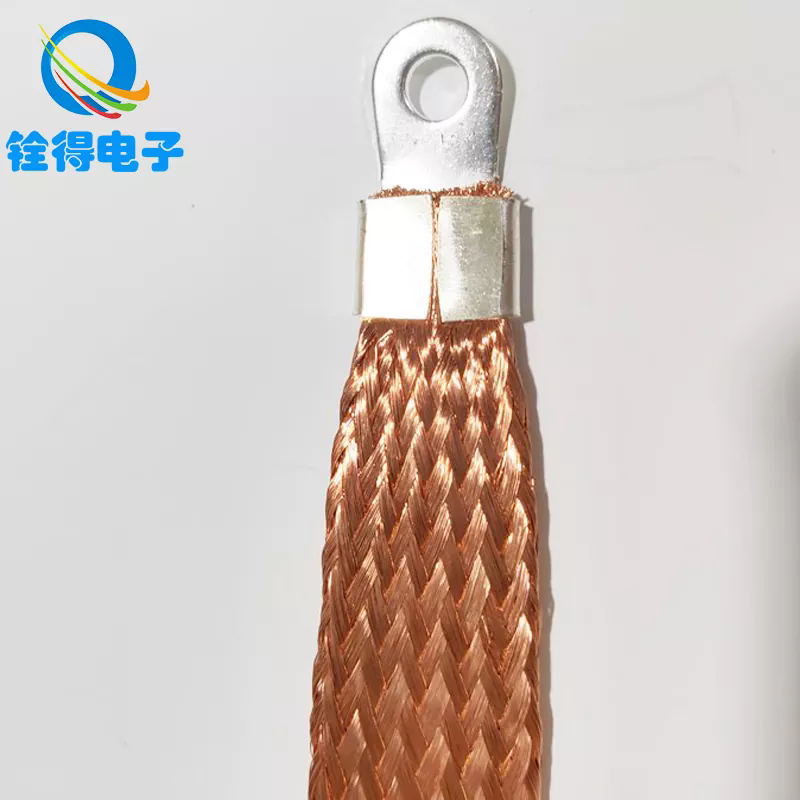

What is an ESD Ground Cable & Key Specifications

Definition and Purpose

An ESD Ground Cable (also referred to as an ESD grounding lead or static discharge cable) is a conductive cable that connects a workbench, wrist strap, ionizer frame, or ESD mat to a defined grounding point. Its function is to provide a low-resistance path to dissipate static charges safely into the ground, preventing uncontrolled electrostatic discharge events that could damage components or cause malfunctions.

Core Parameters of ESD Ground Cable

Below is a standard specification table illustrating typical parameters used in selecting or evaluating such cables:

These parameters may vary depending on the application environment, regulatory norms, and customer requirements.

Central Theme of This Article

The core objective here is to explain why an ESD Ground Cable is critical for static control, how to choose, install and maintain it, and what future trends are shaping its evolution. Additionally, the article will answer two common questions and guide you toward the Quande brand’s solutions.

Why ESD Ground Cable Matters — Advantages & Role

Why Static Control Is Crucial

• Protecting sensitive electronics: Modern integrated circuits, surface-mount devices, and sensors can be destroyed by minute electrostatic discharges (often below 100 V).

• Yield and quality: Static events can cause latent damage, reducing product reliability and leading to field failures.

• Safety and compliance: Many electronic manufacturing standards (such as ANSI/ESD S20.20, IEC 61340) require defined grounding paths and resistance limits.

Thus, the ESD Ground Cable is a vital component in an ESD control program.

Advantages of a High-Quality ESD Ground Cable

1. Controlled discharge: The built-in resistor (commonly 1 MΩ) ensures that static electricity is dissipated at a safe, controlled rate, reducing the risk of arcing or sparks.

2. Flexibility and mechanical robustness: With tinsel or stranded copper inside, the cable endures bending and daily wear more reliably than a solid conductor.

3. Consistency over time: High-quality insulation resists abrasion, humidity, and chemical exposure, preserving performance in a factory environment.

4. Interoperability: Standard connectors (banana plug, alligator clip, locking jacks) make the cable compatible with varied grounding infrastructure.

5. Cost-effectiveness: Compared to active discharge systems or ionizers, a passive cable is low cost but foundational for static control.

Key Role in an ESD Control Program

• Connection between operator and common point: For wrist straps or heel straps, the cable ensures the operator remains at ground potential.

• Link from mats or equipment to earth ground: ESD mats or work surfaces rely on such cables to carry charge to the facility ground.

• Backup and redundancy: In complex ESD systems, multiple grounding paths reduce single-point failures.

From a quality and compliance perspective, negligence in specifying or validating the ESD Ground Cable can undermine an entire static control program.

How to Choose, Install & Maintain an ESD Ground Cable

Choosing the Right Cable (How)

When selecting an ESD Ground Cable, consider the following steps:

• Verify resistance requirement: Ensure the cable meets or is within tolerance of 1 MΩ (or as per the relevant standard).

• Select connector type: Choose connectors compatible with your equipment (banana plug, locking jack, alligator clip).

• Length matters: Choose a length that allows easy reach without excessive slack (1.2 m is common).

• Check mechanical design: Tinsel or braided conductor helps resist fatigue from bending.

• Insulation durability: Use materials with good abrasion, chemical and temperature resistance for industrial environments.

• Certifications and test reports: Request test reports (resistance, insulation breakdown, pull force) from the manufacturer.

Installation Guidelines (How)

Proper installation is key to effectiveness:

1. Connect cable to wrist strap or mat first, then to the common grounding point.

2. Secure the common point to a known earth ground or grounding bus bar.

3. Avoid sharp bends or kinks — cables should have gentle loops to reduce stress.

4. Route away from high-voltage or noisy lines to avoid electrical interference.

5. Perform periodic testing, typically monthly or quarterly, to confirm continuity and resistance.

6. Replace damaged or worn cables immediately — even small breaks or insulation cracks can render the cable ineffective.

Maintenance and Validation (How)

• Use an ESD bench resistance tester to measure the resistance between the operator or mat and the common point.

• The measured resistance should stay within tolerance (e.g. 0.9–1.2 MΩ).

• Inspect the jacket for cuts, abrasions, or discoloration.

• Flex the cable gently to observe signs of internal wire breakage (intermittent continuity).

• Document every test — traceability is important under quality and audit regimes.

Common Applications

• Electronics assembly lines: For every operator station (wrist strap) or workstation mat.

• Repair and rework benches: Protection during soldering, inspection, and handling.

• Cleanrooms and semiconductor fabs: Where static control is critical to yield.

• Laboratories and R&D labs: For prototyping and testing environments.

• Packaging and ESD-safe shipping areas: To ground conductive trays and transport systems.

Future Trends, Challenges & Integration

Evolving Standards and Compliance

Standards like IEC 61340 and ANSI/ESD S20.20 increasingly demand stricter validation, traceability, and audit compliance. Manufacturers and users will face more frequent audits and need to show documented evidence of proper grounding practices. The ESD Ground Cable must meet evolving resistance tolerances and material safety requirements.

Smart and Digital Monitoring

The next generation of cables may incorporate embedded sensors or smart chips to monitor cable integrity, resistance drift, and usage cycles. These “smart cables” would alert maintenance systems if resistance drifts out of range or if mechanical damage is imminent.

Materials and Durability Improvements

Advances in nano-materials, high-performance polymers, and more resilient conductors (e.g. silver-plated tinsel, carbon nanotube composites) will push lifetimes higher, improve flexibility, and reduce failure rates in harsh environments.

Integration with IoT and MES Systems

In fully digitalized factories, each grounding cable might carry an ID or signal that links it to the Manufacturing Execution System (MES). This gives visibility into maintenance intervals, operator compliance, and static control health in real time.

Challenges to Overcome

• Balancing cost versus advanced features: Smart cable solutions may raise cost, affecting adoption in lower-margin sectors.

• Environmental stress and wear: High humidity, chemical exposure, and abrasion remain ongoing threats.

• User compliance: Even with top-tier cables, improper connection or user oversight undermines performance.

Frequently Asked Questions (FAQ)

Q1: What resistance should an ESD Ground Cable normally have?
A1: The typical target is 1 MΩ ±10% (i.e. 0.9 MΩ to 1.1 MΩ). This resistor safely limits discharge current while allowing static to flow to ground. In some setups, a tolerance band of 0.75–1.25 MΩ is acceptable, depending on the standard or customer requirement.

Q2: How often should an ESD Ground Cable be tested or replaced?
A2: Testing should occur at least monthly or quarterly, depending on your quality regime and audit frequency. If measurements drift out of tolerance or the jacket shows damage (cuts, abrasions, discoloration), the cable must be replaced immediately. Mechanical fatigue or intermittent continuity during bending is a failure sign.

Summary & Brand Introduction

The ESD Ground Cable is a foundational, yet often underrated, element in any effective static control program. Understanding what it is, why it matters for product yield, reliability, and safety, and how to select, install, test, and maintain it forms the backbone of a robust ESD strategy. Looking ahead, smart cable integration, IoT connectivity, advanced materials, and stricter standards will shape the evolution of this technology.

Quande offers a full spectrum of ESD grounding solutions — including durable, certified ESD Ground Cables designed for long life, consistent performance, and seamless integration into advanced manufacturing systems. For customized specifications, technical support, or procurement inquiries, contact us.
